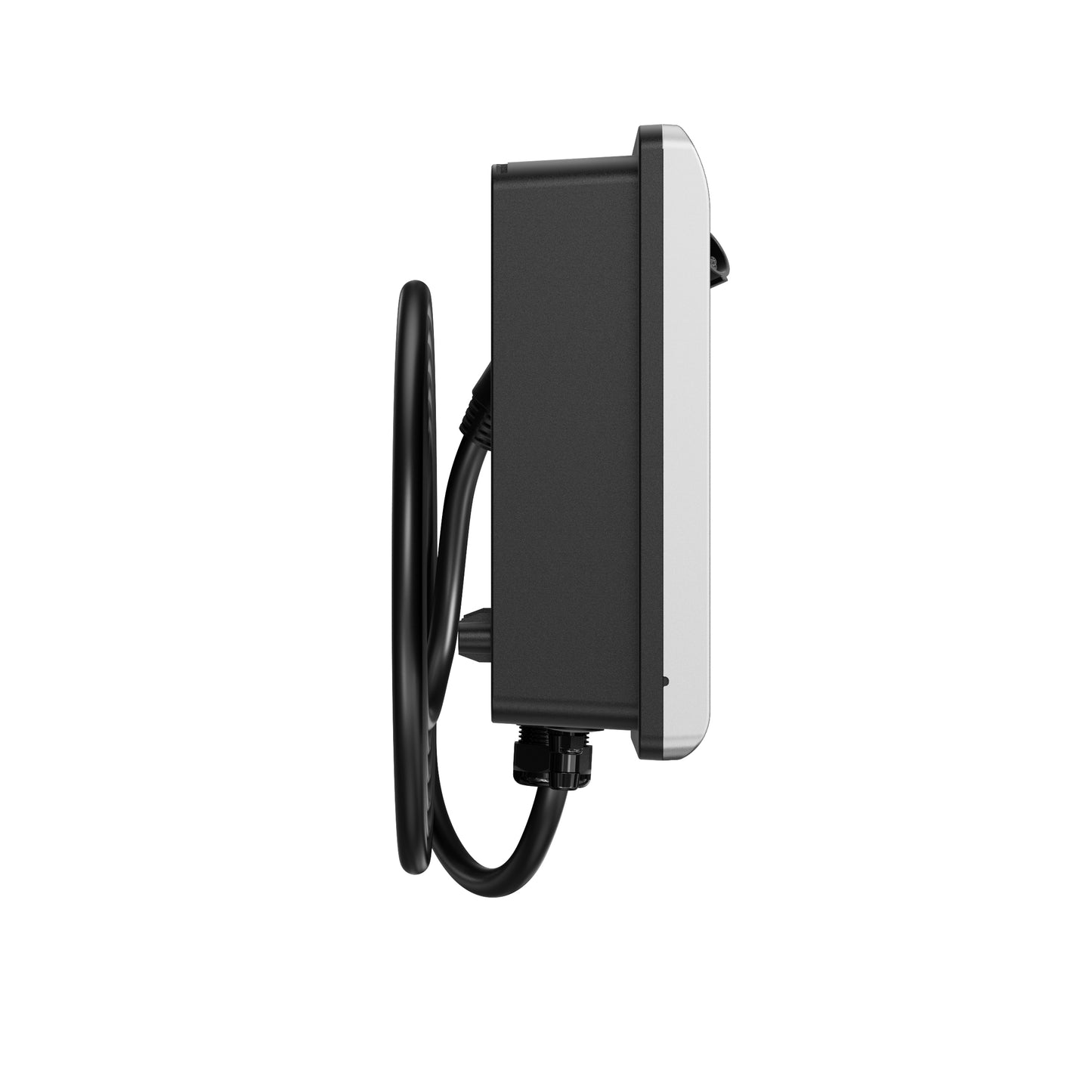

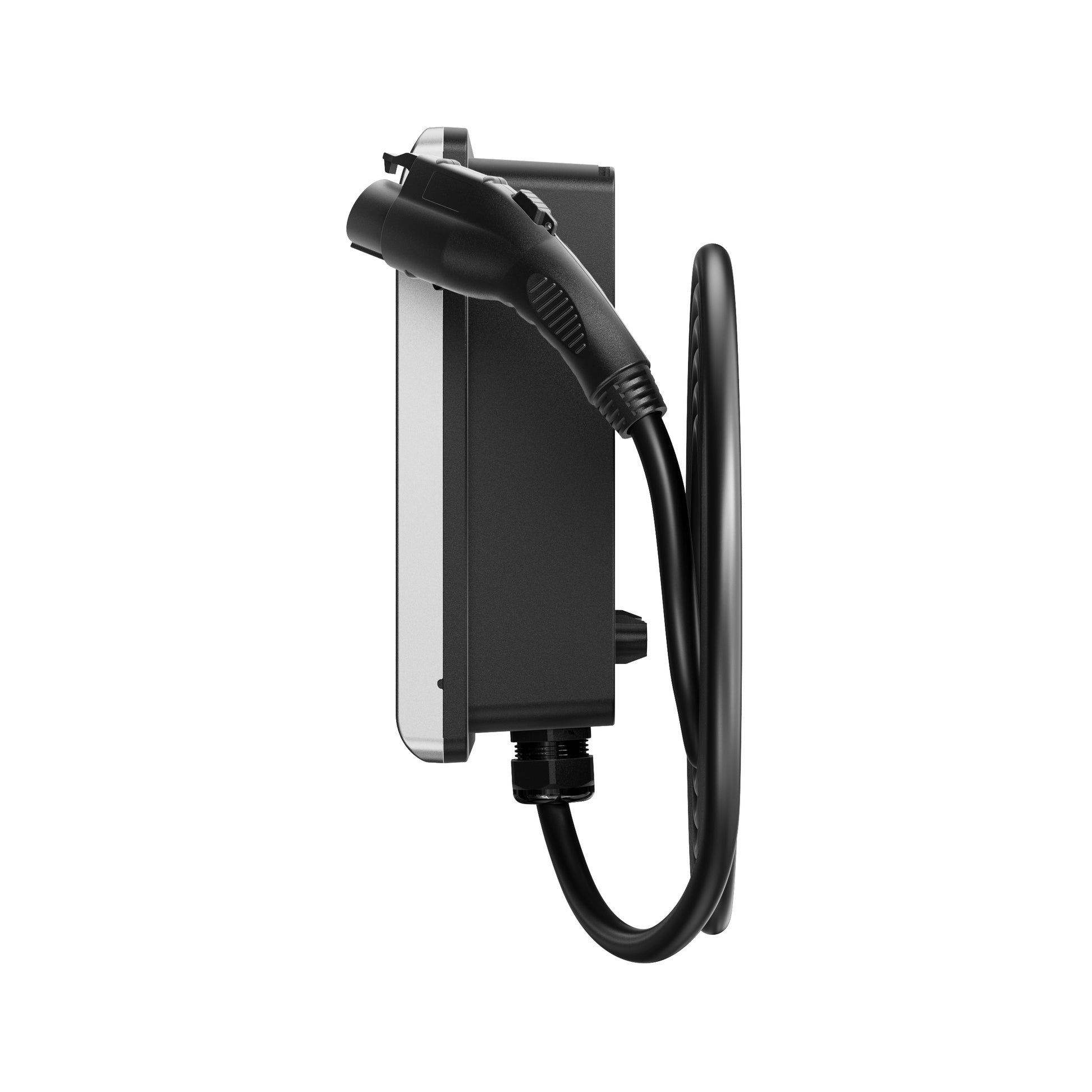

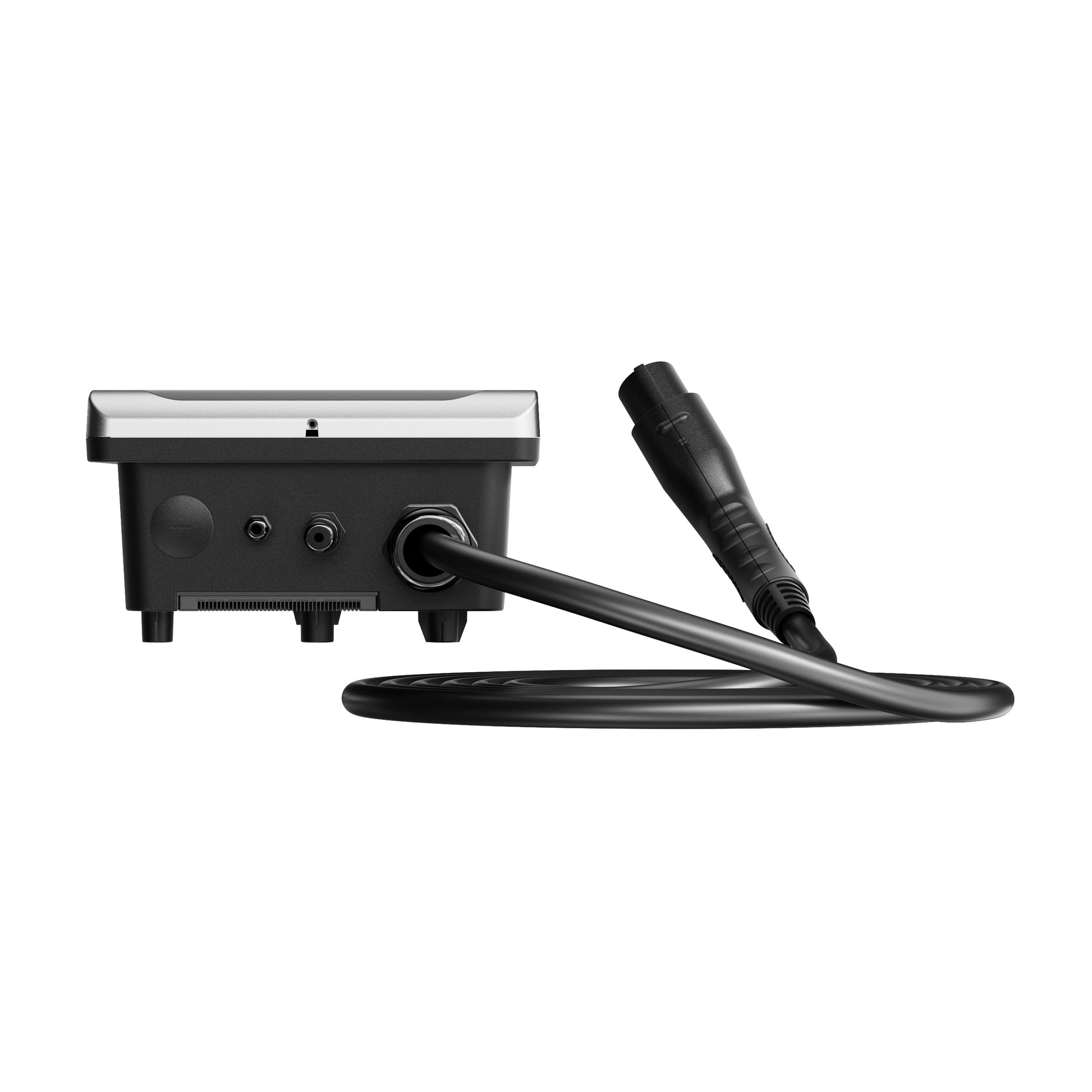

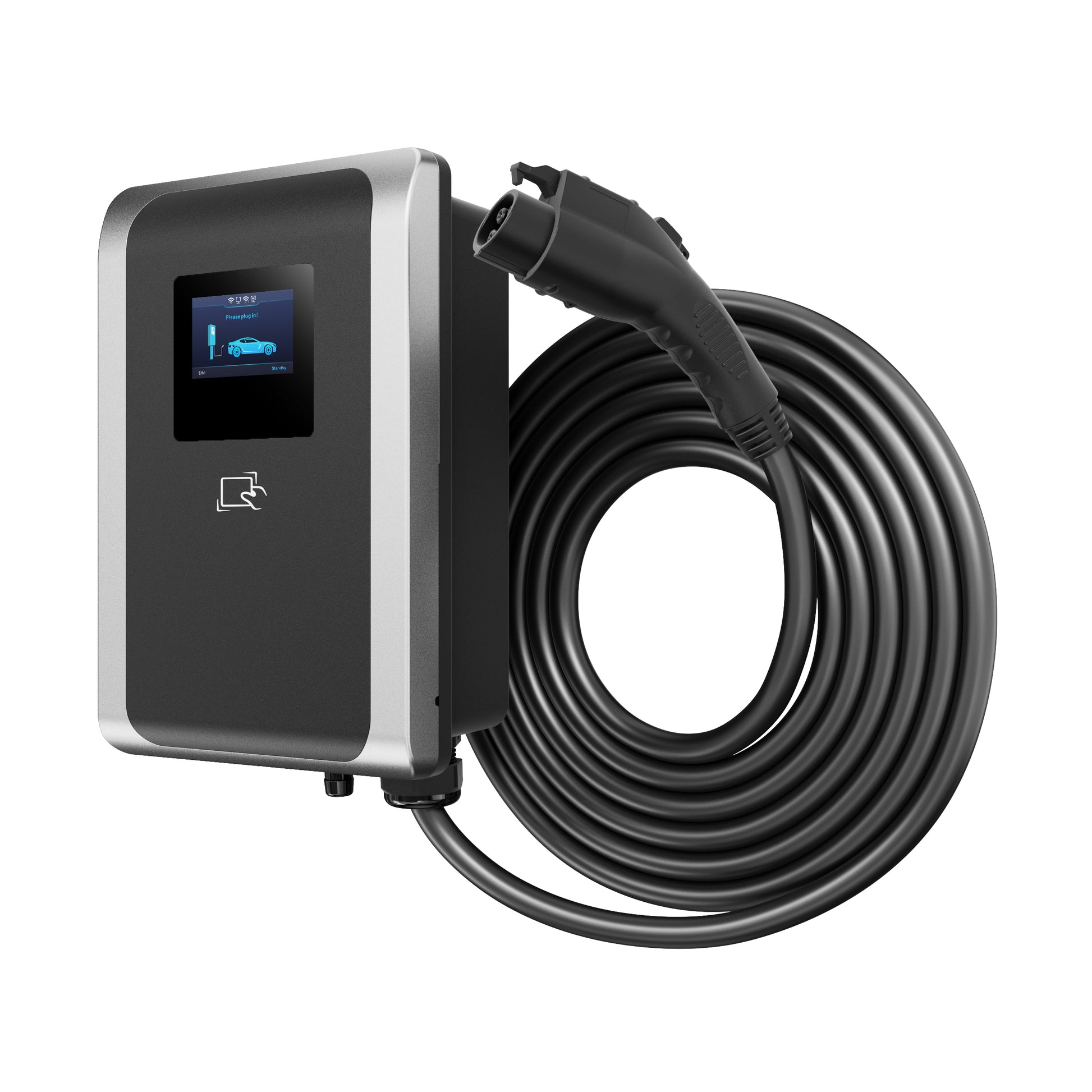

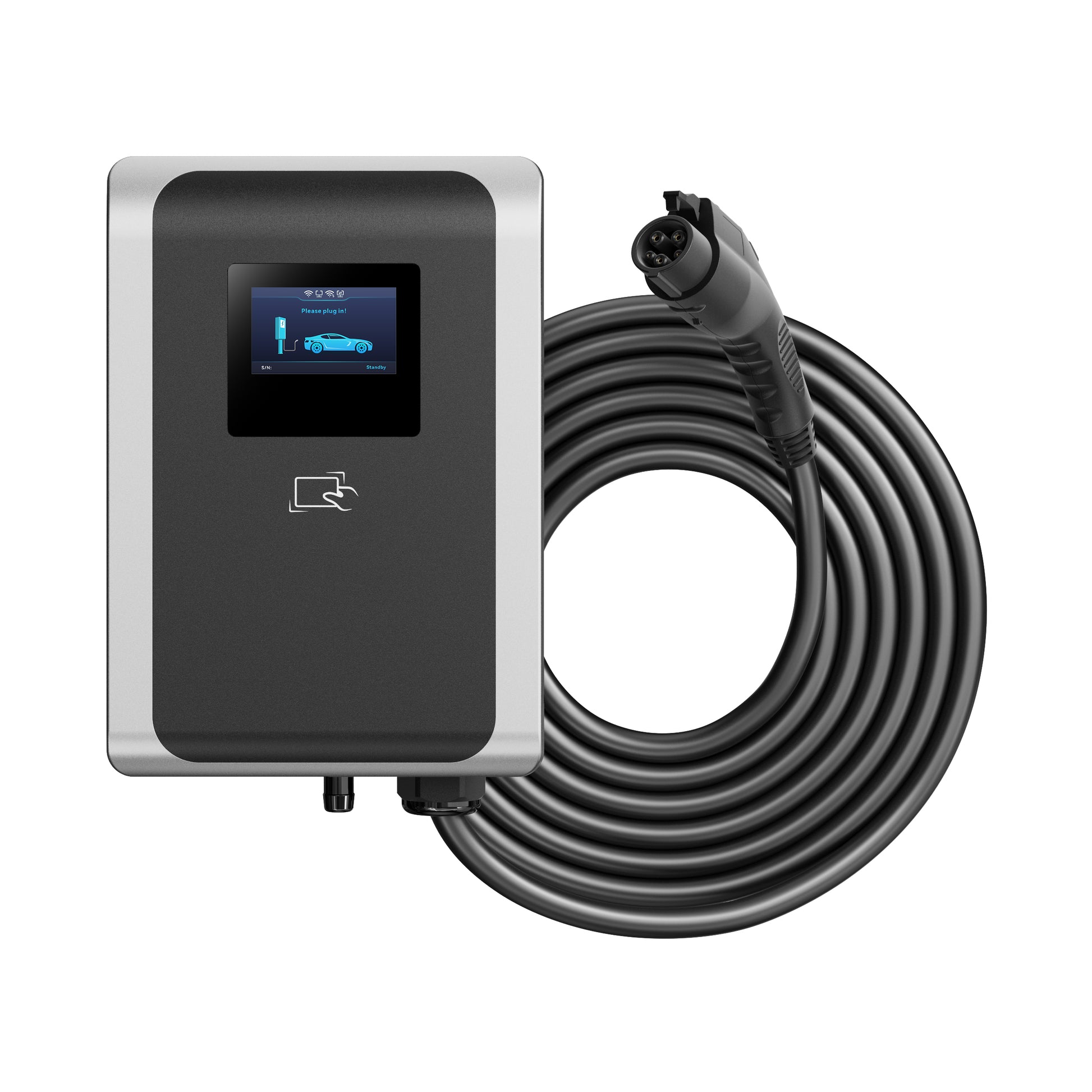

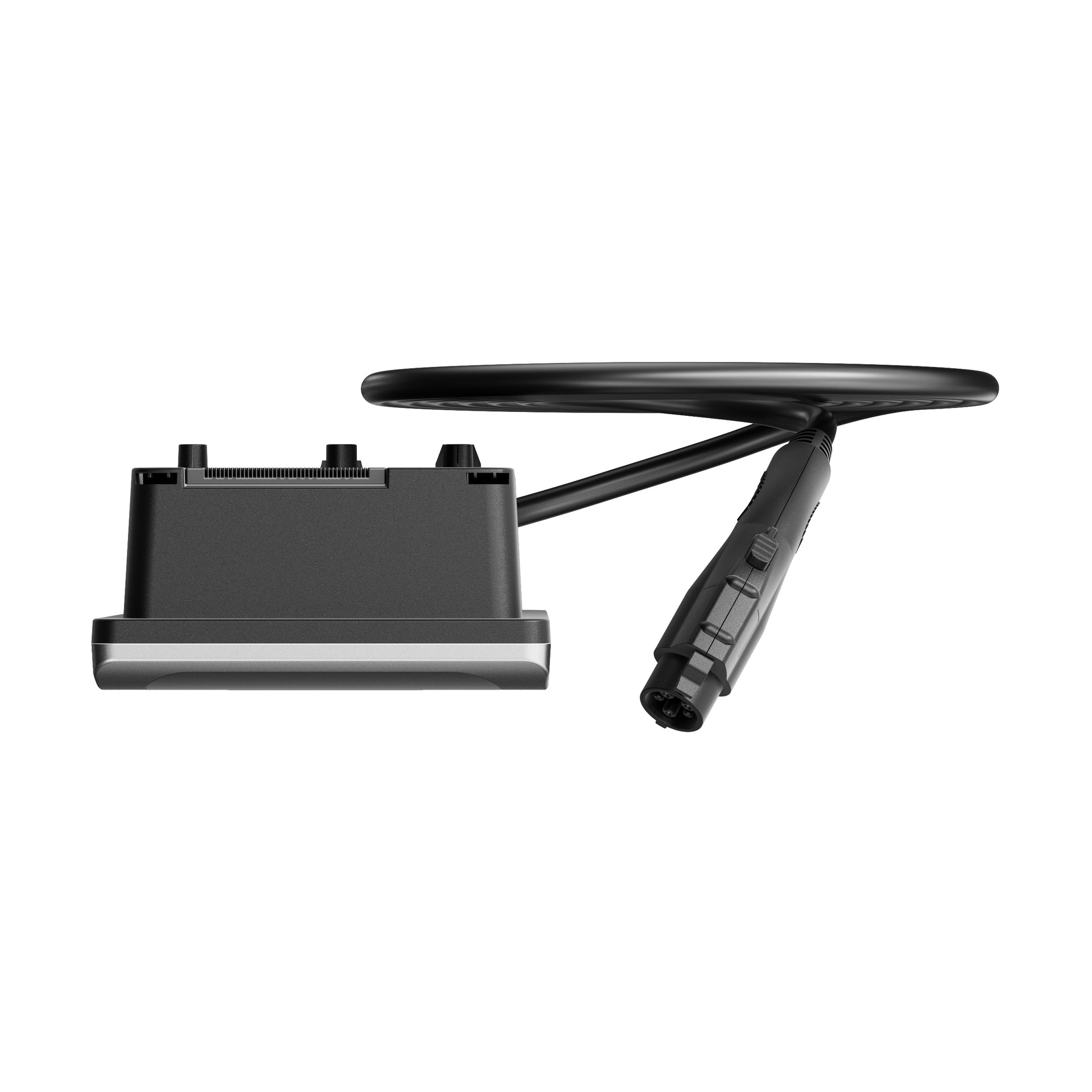

TOPDON 80A Level 2 Commercial EV Charger

Experience the fastest Level 2 charging with the TOPDON PulseQ AC Max 80A, a premium EV charger designed for maximum power, efficiency, and convenience. With an impressive 80A (19.2kW) charging capacity, this high-performance charger is perfect for homeowners, businesses, and fleet operators who demand the fastest charging speeds. Featuring advanced smart controls, seamless connectivity, and robust safety features, the PulseQ AC Max 80A is built for the future of electric mobility.

Working Temperature Fahrenheit: -86℉-122℉
Working Temperature Celsius: -30℃-50℃
Storage Temperature Fahrenheit: -39.2℉-104℉
Storage Temperature Celsius: -40℃-75℃
Product Width (inches): 11.18
Product Weight (lbs): 25.35
Product Length (inches): 15.91
Product Height (inches): 5.75
Energy Star Certified: Yes
Connector Type: Type 1
Charging Cable Length: 24.6
AC Power Input/Output Voltage: 19.2W
AC Power Adjustable Current: Up to 80A

Feature & Benefit 01
Ultra-Fast 80A Charging – Power When You Need It
Delivering up to 19.2kW of power, the PulseQ AC Max 80A significantly reduces charging time, making it one of the fastest Level 2 chargers available. Compatible with SAE J1772 (Type 1) connectors, it ensures efficient and reliable charging for a wide range of electric vehicles, making it the ideal choice for EV owners looking for high-performance charging solutions.
Feature & Benefit 02
Smart Charging – Total Control at Your Fingertips
The PulseQ AC Max 80A offers intelligent charging control through RFID cards and a dedicated mobile app, allowing you to adjust the current from 6A to 80A to match your power requirements. Whether managing your charger via Wi-Fi, Ethernet, Bluetooth, or optional 4G, you’ll enjoy a seamless, user-friendly charging experience that keeps you in control wherever you are.
Feature & Benefit 03
Seamless Connectivity for Maximum Efficiency
Stay connected with multiple communication options, including Wi-Fi (2.4GHz), Ethernet (RJ-45), Bluetooth, and optional 4G, ensuring real-time remote monitoring and control. Built with OCPP 1.6J compatibility, this charger supports networked smart charging, making it ideal for both home and commercial applications where remote management and intelligent power distribution are essential.
Feature & Benefit 04
Built for Durability – All-Weather Performance
Engineered for indoor and outdoor use, the PulseQ AC Max 80A is housed in a Type 4/IP65-rated enclosure, ensuring superior protection against water, dust, and harsh weather conditions. With an operating temperature range of -22°F to 122°F, it’s designed to provide consistent and reliable performance in any environment, whether at home, in a workplace, or a commercial charging station.
Feature & Benefit 05
Advanced Safety for Worry-Free Charging
The PulseQ AC Max 80A meets the highest industry standards, including ETL, FCC, and Energy Star certifications, and complies with UL 2594 and NEC 625 regulations. Featuring overload, short circuit, over/under voltage, surge, ground, and over-temperature protection, this charger ensures safe, stable, and reliable charging every time.
Feature & Benefit 06
Versatile Installation with Intuitive Interface
Designed for flexible installation, the PulseQ AC Max 80A can be wall- or pole-mounted, seamlessly integrating into home garages, commercial spaces, and fleet operations. Equipped with a 4.3-inch LCD touchscreen display and multi-color LED indicators, it provides real-time charging insights for effortless monitoring and operation.
