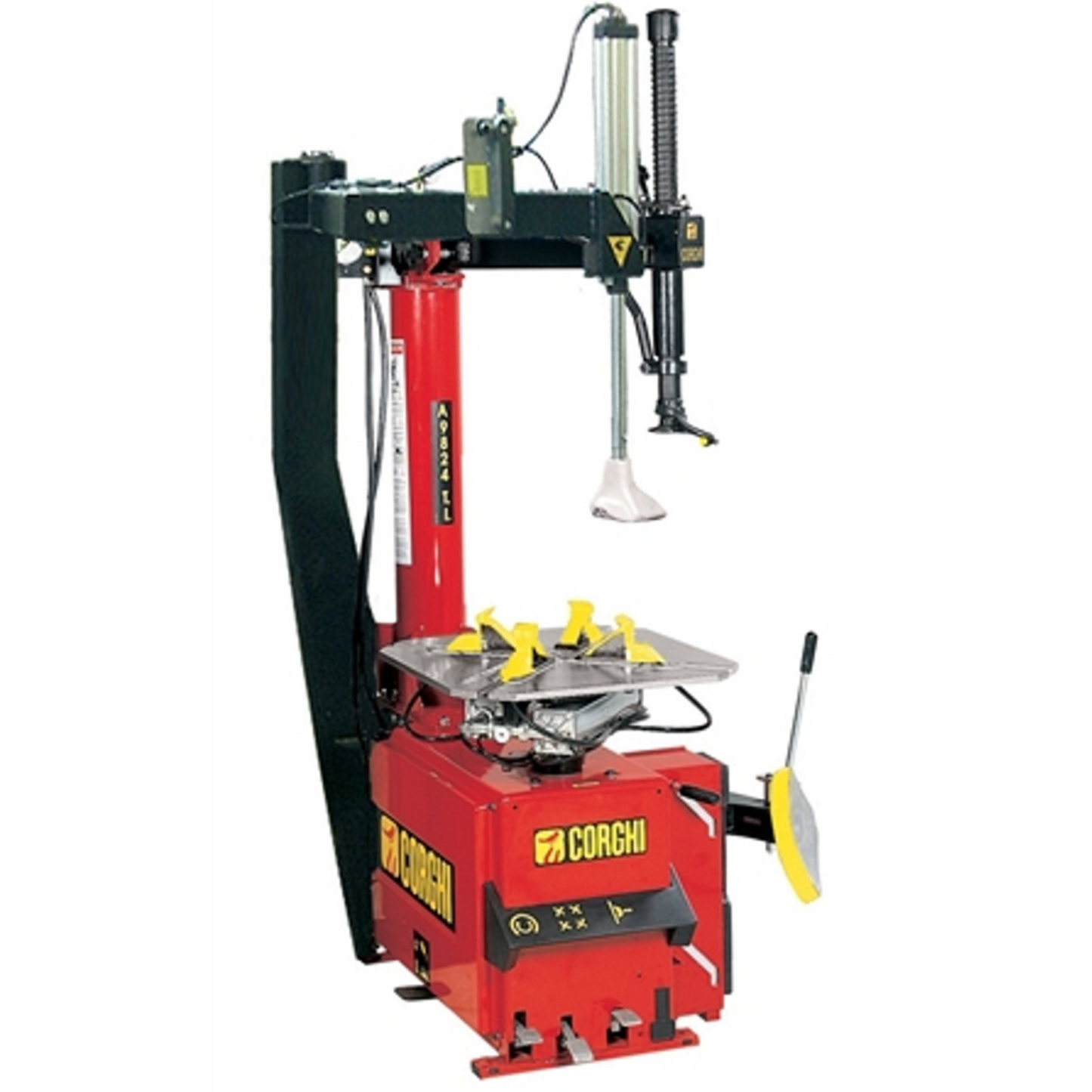

Corghi A9824LL + BPT Helper Leverless Swing Arm Tire Changer (Elect)

This tire changer features a swing arm and rim clamp design, equipped with a powerful electric motor and assist arm (BPT) to handle a wide range of tire sizes. Its leverless head, bead seat jets, and adjustable components make it efficient and user-friendly for high-performance tire servicing.

• Machine Style: Swing Arm – Rim Clamp
• Inside Clamping Range: 13" – 26"
• Outside Clamping Range: 10" – 24"
• Maximum Tire Diameter: 47"
• Maximum Tire Width: 14"
• Supply Voltage: 115V – 1ph – 60Hz
• Head Style: Standard
• Turn Table Torque: 958.83 ft/lbs
• Bead Breaker Shoe Force: 2756 lbs
• Weight: 571 lbs

Dimensions:

• Width: 49"
• Depth: 42"
• Height: 99.5"

• Leverless head allows easy removal/installation of tire bead without a tire bar
• Built-in tire inflator with bead seat jets in the jaws
• Unique locking handle locks head away from the rim during operation
• 958.83 ft/lb high torque electric motor with 2-speed forward and single-speed reverse
• Rebuildable stainless steel/aluminum cylinders with heavy-duty stainless turntable
• Adjustable bead breaker arm with extendable pad
• Easily adjustable jaws
