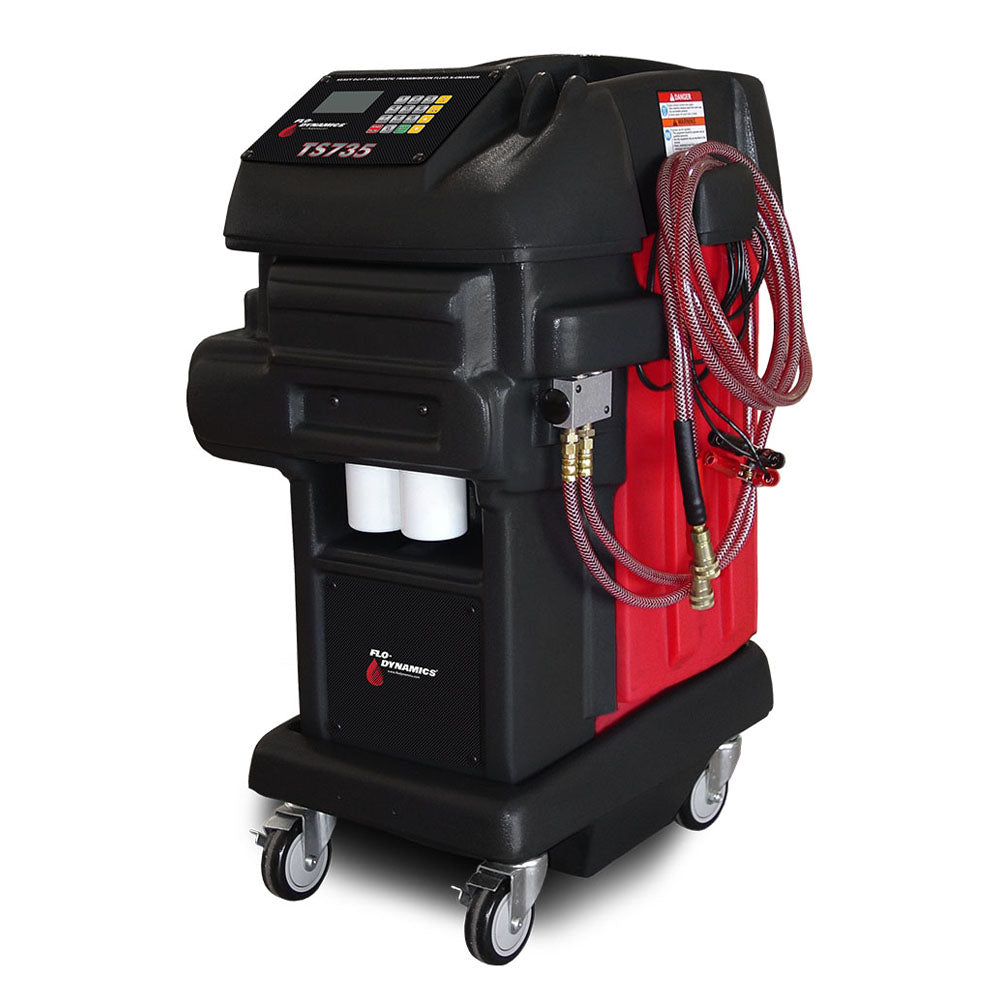

Flo-Dynamics ATF Inline Exchanger - TS735

Easily perform exchanges from low-flow vehicles to trucks and buses

• Fully automatic, complete exchange with the push of a button
• Powerful 2.5 gallon per minute rated pump ensures rapid exchanges with unmatched speed
• Patented electronic measuring technology allows optimum fluid level to be maintained

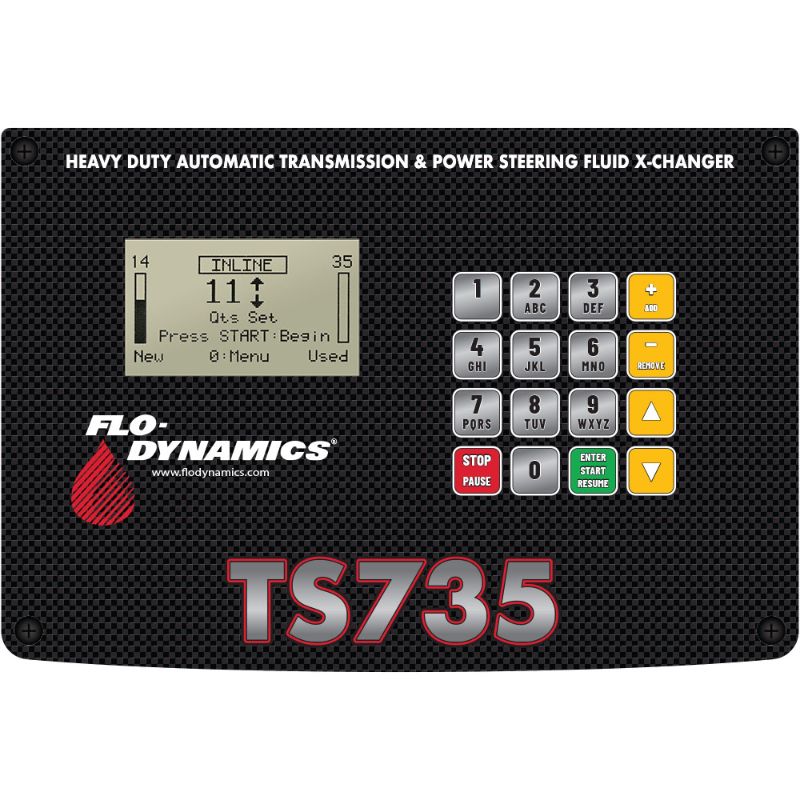

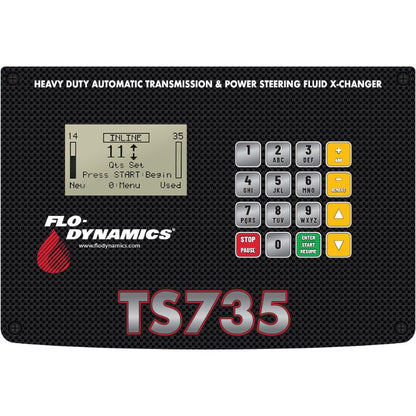

• Select 1 to 35 quart exchange amount Ergonomically correct working height Fully interactive LCD control panel with easy-to-follow screen prompts with service indicators
• Patented flow diverter valve allows you to switch flow direction with the push of a button

Dimensions: 39” H x 24-3/4” W x 25” D
Weight: 138 lb.
Waste Fluid Tank: 35 quarts
New Fluid Tank: 35 quarts
Power: 12V DC from vehicle battery

• Add/remove fluid feature
• Fluid totalizer
• Volt meter
• Power loss memory
• Pause function
• Two inline 25-micron filters
• Drains transmission pan for filter change
• Rotocast polyethylene body and tanks won’t scratch vehicle
• Adapter rack drains into waste tank keeping adapters dry and organized
• Clear service hoses provide visual confirmation of fluid exchange
• Durable, 5-inch locking caster wheels
• Included standard adapter set for easy hookup to virtually any make and model
