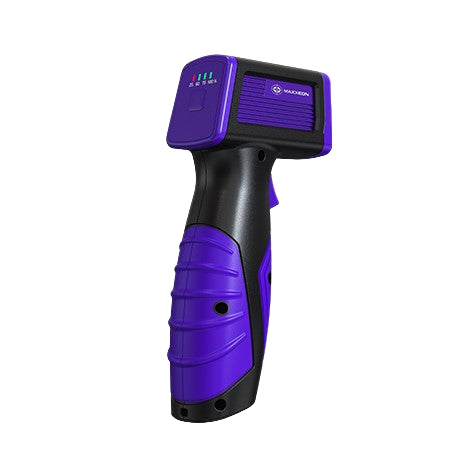

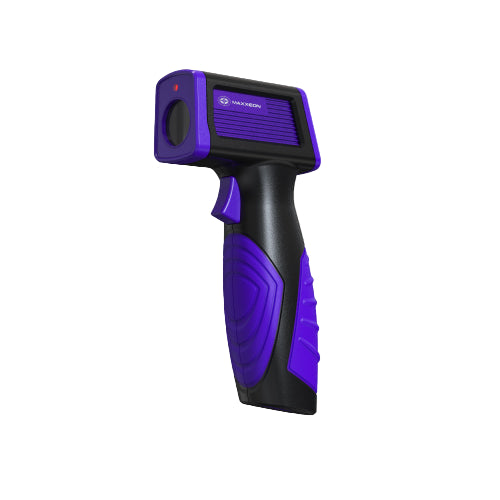

WorkStar® SCRUTINEER 365nm UV Pistol-Grip Inspection Light

• High-Performance UV Output: Delivers an LED Radiant Flux of 2800mW and a typical max intensity of 28,000µW at 15 inches (38 cm).

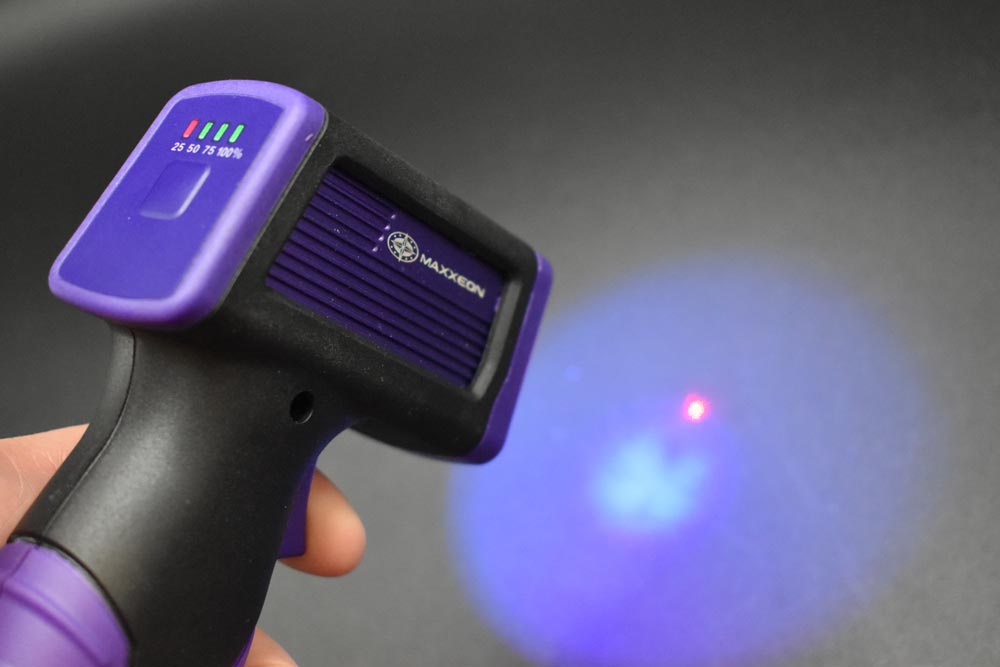

• Red Laser Targeting: A red laser dot above the center beam ensures quick and accurate targeting, even in bright daylight.
• 365nm UV-A Beam: Narrow-spectrum UV light with just enough white light for precise aiming.
• Product Dimensions: 6” L x 1.25” x 2.75″
Applications:
• Adhesive Curing: Quickly cures UV-A adhesives with its intense 365nm beam while allowing easy alignment during the process.
• Leak Detection: Ideal for locating dyes in air conditioning, hydraulic oil, motor oil, and coolant systems.
• Crack Testing (NDT): Reliable for non-destructive testing and crack detection.

Function Guide:
• Power On: Press and hold the rear switch for 1.5 seconds. The indicator light will turn on, signaling the unit is in standby mode.
• Momentary UV Mode: While in standby mode, press and hold the front switch to activate the UV light. Release to turn it off.
• Constant UV Mode: While in standby mode, quickly double-click the front switch to turn the UV light on continuously. Press once more to turn it off.
• Power Lock (Off): To exit standby mode and lock the power, press and hold the rear switch for 1.5 seconds until the indicator light turns off.
